Galvanized Steel Series

  • AZ60/100/150 Galvanized aluminum steel coil

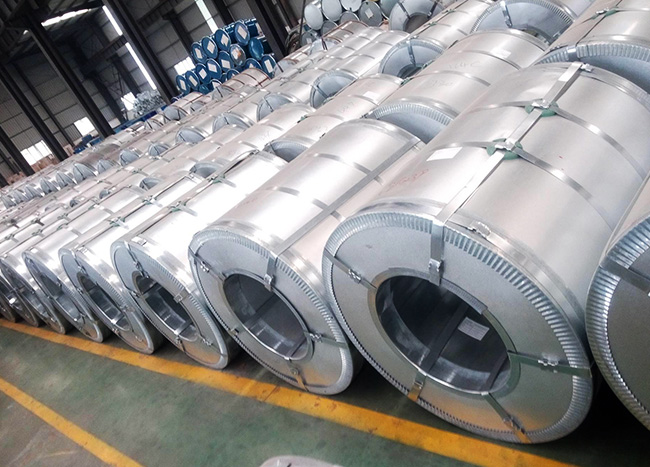

AZ60/100/150 Galvanized aluminum steel coil

Description:

Material grade:DX51D+AZ50/AZ60/AZ80/AZ100/AZ150/AZ120/AZ270

Thickness:0.11-2.0 mm

Width:600mm,914mm,1000mm,1200mm,1219mm,1250mm,1220mm)

Coil ID:508mm, 610mm


parameters

Standard

JIS G3302 / ASTM A653M / EN10327 / DIN17162

Grade

DX51D+AZ50/AZ60/AZ80/AZ100/AZ120/AZ150/AZ270

Thickness

0.12mm-3mm

Width

10-125cm

(usual size:914mm,1000mm,1200mm,1219mm,1250mm,1220mm)

Coil ID

508mm, 610mm

Color weight

4-6 tons

Packing

Standard seaworthy export packing: waterproof paper+steel trip

packed+wooden case seaworthy package

Delivery

Within 15-20 days

Price

FOB&CNF&CIF price

Payment terms

TT or L/C

Application:

Roof, wall, garage, sound insulation wall, pipeline and combined house

Muffler, exhaust pipe, wiper accessories, fuel tank, truck box

Refrigerator back plate, gas stove, air conditioner, electronic microwave oven, LCD frame, CRT explosion-proof belt, LED backlight, electrical cabinet, etc. Agriculture: Pipes for pig house, chicken house, granary, greenhouse,

Heat insulation cover, heat exchange, dryer, water heater,etc.


introduction

Standard:JIS G3302 / ASTM A653M / EN10327 / DIN17162

Characteristic
1. Thermal reflectance:
The heat reflectivity of aluminized zinc steel coil is very high, which is twice that of galvanized steel plate. It is often used as heat insulation material.
2. Heat resistance:
Aluminum zinc steel coil has good heat resistance and can withstand a high temperature of more than 300 degrees Celsius. It is very similar to the high-temperature oxidation resistance of zinc plating. It is often used in chimney tubes, ovens, illuminators and fluorescent lampshades. Corrosion resistance:
The corrosion resistance of aluminized zinc steel coil is mainly due to the protective function of aluminum and aluminum. When zinc is worn, aluminum forms a dense layer of alumina to prevent corrosion-resistant substances from further corroding the interior.
3. Economy:
Because the density of 55% Al Zn is smaller than that of Zn, the area of aluminum plated zinc steel coil is more than 3% larger than that of zinc plated steel coil under the condition of the same weight and the same thickness of gold plating layer.
4. Easy to paint
Excellent adhesion between aluminized zinc coil and paint, which can be painted without pretreatment and weathering treatment.
