Size: 1/4-7/8"
Thickness: 0.56-1.5mm
Cu: 99.9%
Length: 1-5m
Usage: HAVC, air condition and refrigeration .
| Insulation Type | Thermal Conductivity | Vapor Barrier | Water Absorption | Tensile Strength | Shrinkage | Fire Proof Rating |
|
Irradiation Polythene Insulation (IXPE Insulation) |
≤0.033W/m.k | u≥5000 |
≤0.0076 g/100cm2 |
≥0.34MPa | ≤7% |
ASTM E84 UL 94 AS/NZS 1530.3 EN 13501-1 |
| Copper Alloy | Chemical Composition | Temper | Mechanical Property |
Grain Size mm |
||
|
Copper % |
Phosphorus % |
Tensile Strength MPa |
Elongation % |
|||
| C12200 | ≥ 99.90 | 0.015-0.040 | O60 | ≥ 205 | ≥ 40 | ≥ 0.040 |
| C12200 | ≥ 99.90 | 0.015-0.040 | O50 | ≥ 205 | ≥ 40 | 0.015-0.040 |

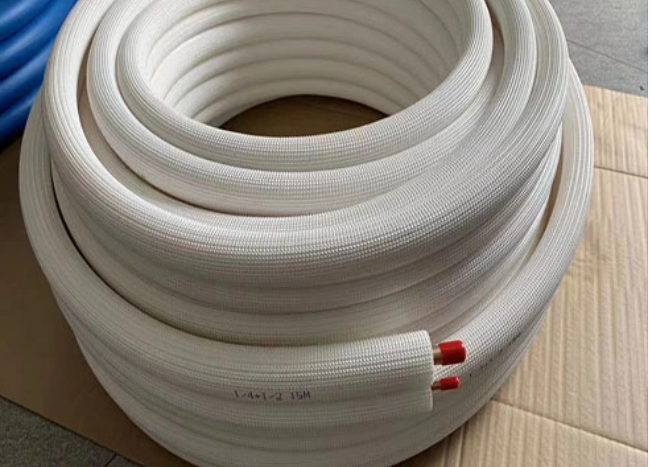

Name: HAVC Pancake Copper pipe
Color: Red
Material : C1100, C12200, T2, C11000,C1220
Usages: HAVC, installation of air conditioning and refrigeration systems
Cu Content: 99.90%-99.97%
Packing: Carton or plywood box , coils are capped with plastic end caps
Standard: ASTM B 280 / EN 12735-1 and ASTM B88 and all relevant international standards
