Copper Series

  • HAVC Pancake Copper pipe

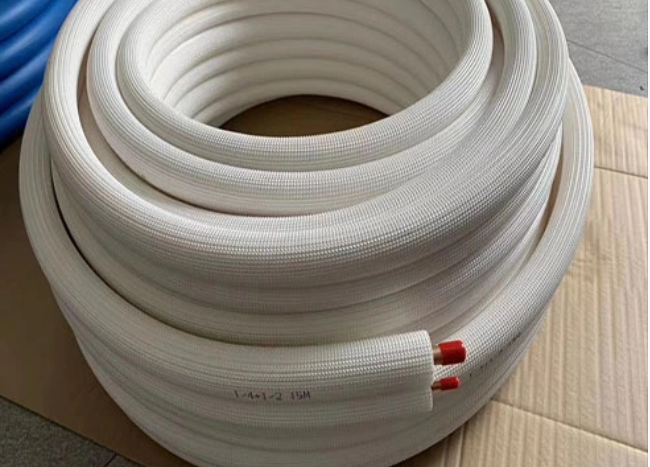

HAVC Pancake Copper pipe

Description:

Size: 1/4-7/8"

Thickness: 0.56-1.5mm

Cu: 99.9%

Length: 1-5m

Usage: HAVC, air condition and refrigeration .

parameters

Technical Properties for HAVC Pancake Copper pipe
Insulation Type Thermal Conductivity Vapor Barrier Water Absorption Tensile Strength Shrinkage Fire Proof Rating
Irradiation Polythene Insulation
(IXPE Insulation)
≤0.033W/m.k u≥5000 ≤0.0076
g/100cm2
≥0.34MPa ≤7% ASTM E84
UL 94
AS/NZS 1530.3
EN 13501-1

Chemical Composition & Mechanical Property - ASTM B280 Copper Pipe
Copper Alloy Chemical Composition Temper Mechanical Property Grain Size
mm
Copper
%
Phosphorus
%
Tensile Strength
MPa
Elongation
%
C12200 ≥ 99.90 0.015-0.040 O60 ≥ 205 ≥ 40 ≥ 0.040
C12200 ≥ 99.90 0.015-0.040 O50 ≥ 205 ≥ 40 0.015-0.040

introduction

Name: HAVC Pancake Copper pipe

Color: Red


Material : C1100, C12200, T2, C11000,C1220

Usages: HAVC, installation of air conditioning and refrigeration systems

Cu Content:  99.90%-99.97%

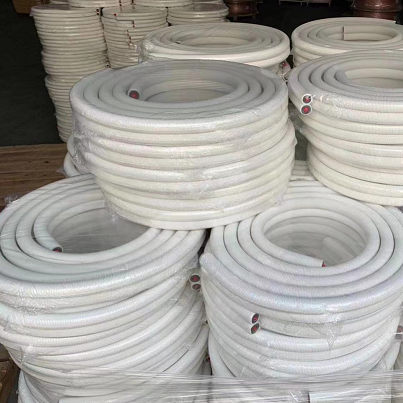

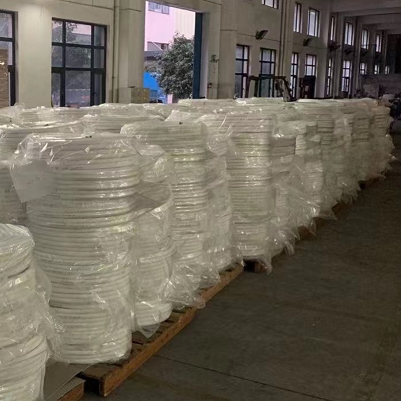

Packing: Carton or plywood box , coils are capped with plastic end caps

Standard: ASTM B 280 / EN 12735-1 and ASTM B88 and all relevant international standards
