Insulated Copper pipe

Description:

Material: C11000, C12200

Cu: min 99.9%

Size: 1/4-7/8"

Thickness: 0.56-1.5mm

parameters

Size List
Size Copper Pipe Thickness Insulation Size Length Available Flame Resistant
1/4+3/8 6.35x0.75+9.52x0.8mm 3/8"/1/2"/3/4"/1" 1ft - 164ft M1/B1
1/4+1/2 6.35x0.75+12.7x0.8mm 3/8"/1/2"/3/4"/1" 1ft - 164ft M1/B1
1/4+5/8 6.35x0.75+15.88x0.9mm 3/8"/1/2"/3/4"/1" 1ft - 164ft M1/B1
3/8+5/8 9.52x0.8+15.88x0.9mm 3/8"/1/2"/3/4"/1" 1ft - 164ft M1/B1
3/8+3/4 9.52x0.8+19.05x0.9mm 3/8"/1/2"/3/4"/1" 1ft - 164ft M1/B1
1/2+3/4 12.7x0.8+19.05x0.9mm 3/8"/1/2"/3/4"/1" 1ft - 164ft M1/B1
3/8+7/8 9.52x0.8+22.22x1.14mm 3/8"/1/2"/3/4"/1" 1ft - 164ft M1/B1

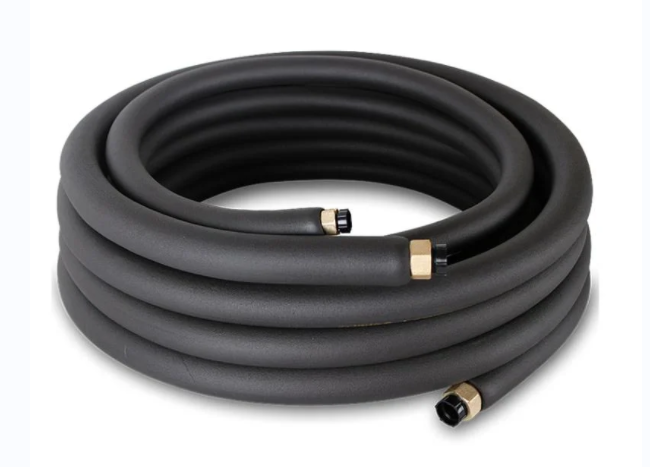

1ft-50ft Copper Line Set both of the two copper pipe end can do flaring and nuts.
Chemical component

 (Ni)

(P)

(Bi)

(Pb)

(Fe)

(S)

(As)

(Sb)

≤0.01

0.013~0.050

≤0.002

≤0.005

≤0.05

≤0.005

≤0.005

≤0.002

(Sn)

(O)

(Cu+Ag)









≤0.01

≤0.01

≥99.85

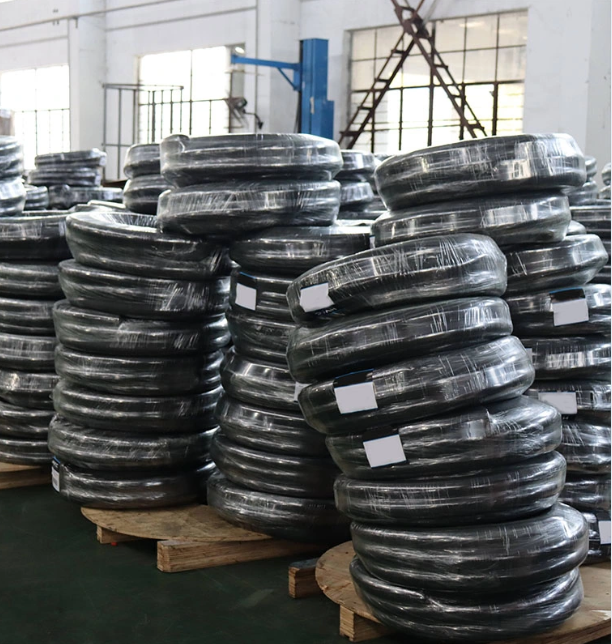

Packaging & Shipping

Package details:

Standard export seaworthy package,or as required.

*Film/kraft paper/bubble bag package.
*Wooden Pallet.

introduction

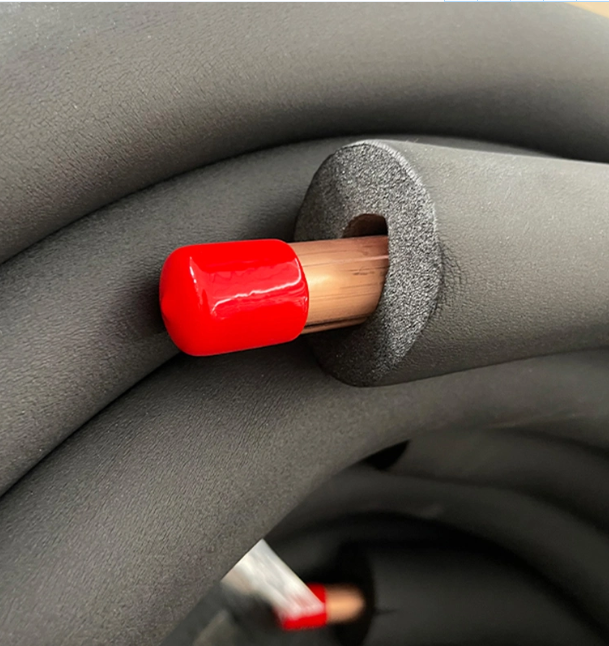

Name: Insulated copper pipe
Usage:  AC Copper Size what we can do have following 1/4" 3/8" 1/2" 5/8" 3/4" 7/8" 1 1/8", length can do 15m 20m 25m 30m 50m.
Insulation is made of 1/2" Polypropylene & UV Resistant, meets ASTM E 84, UL94, ASTM D1056 and ASTM G 21. Working temperature from -40ºC to 120ºC.

Works for every Air Conditioning & Refrigeration Application including Ductless mini-split, heat pump and Centralized Air Ducted Units.

Pressure Rating: 2100 to 7000 PSI, much more than required 700 PSI for R410. 7. Insulation we produce by ourself, can print your company name, size, meters etc.
